Product Advantage

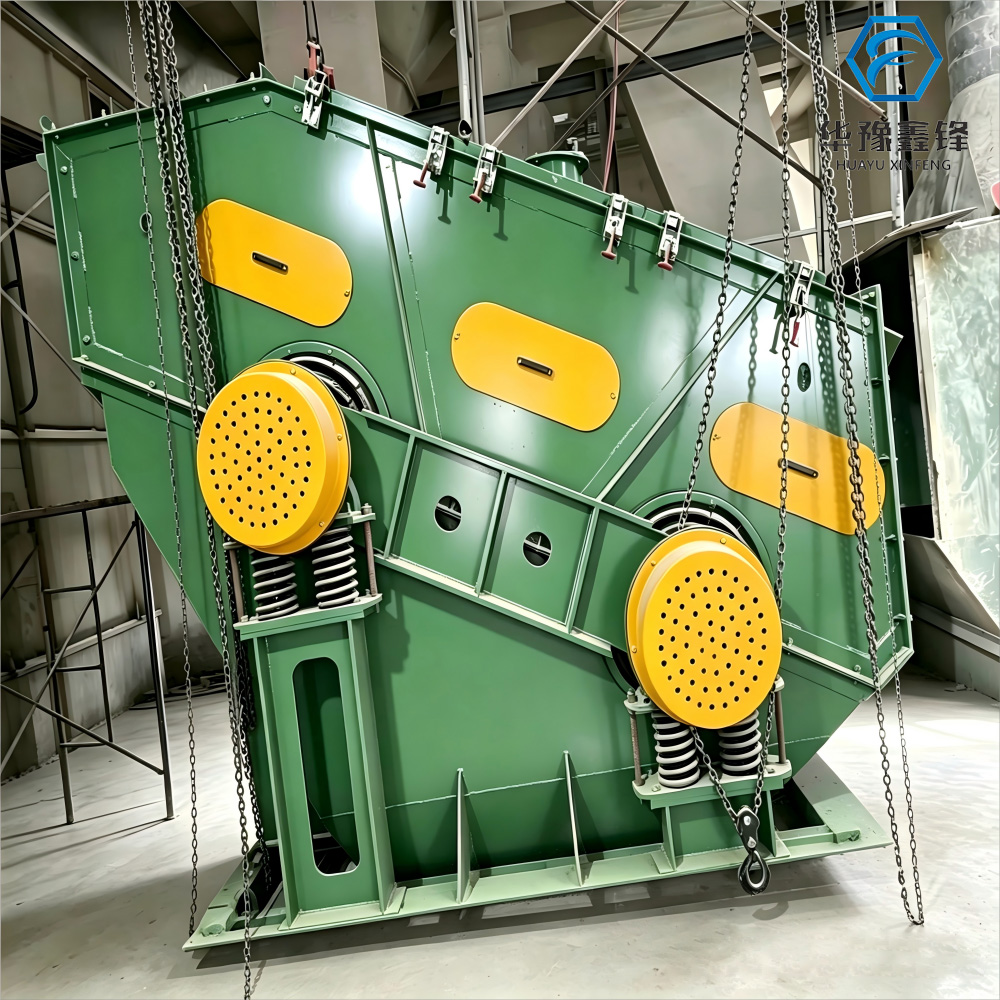

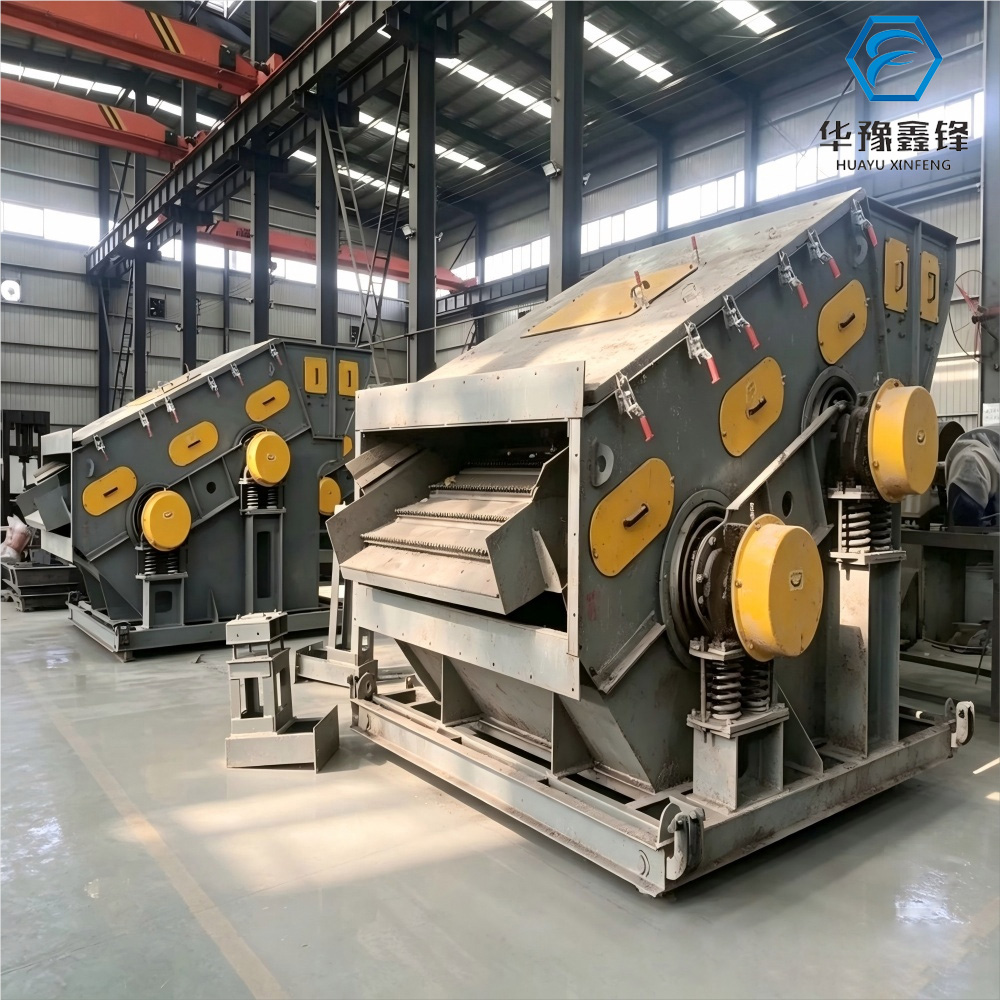

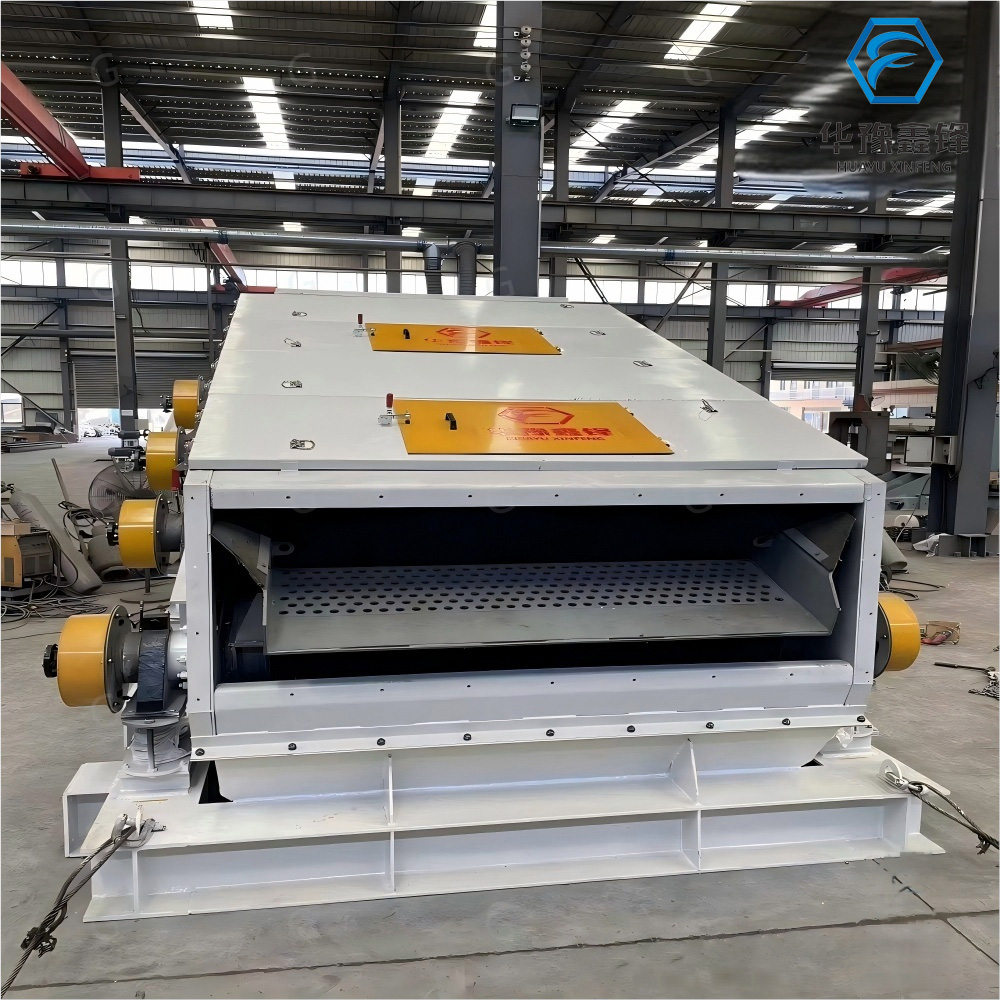

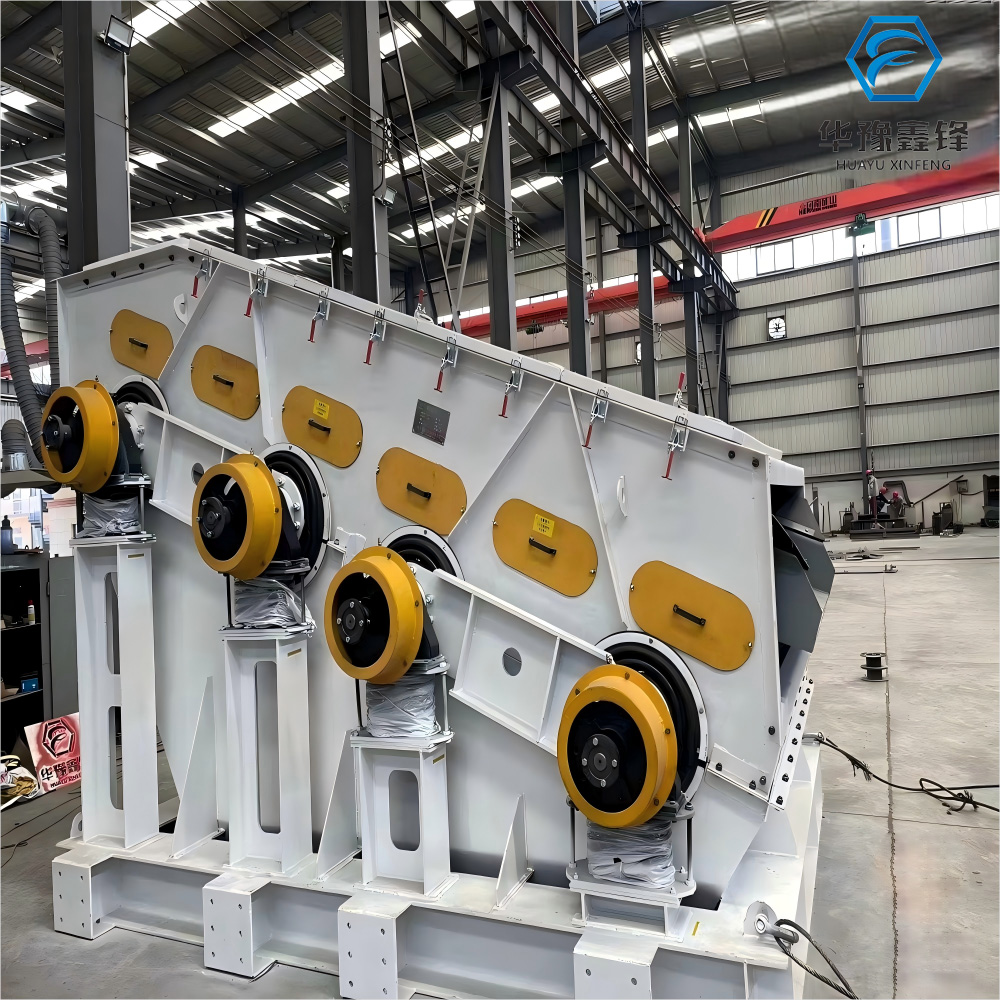

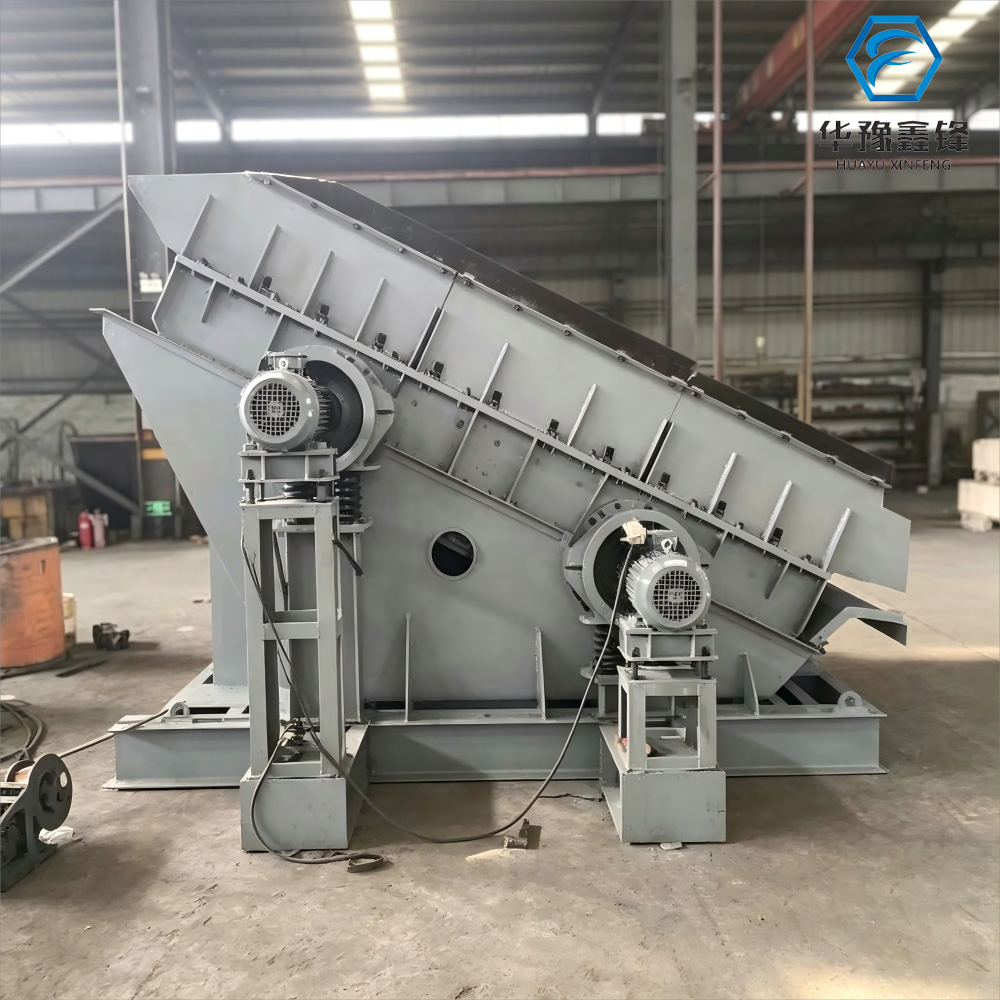

This environmental vibrating screen features fully static sealed structure with rigid connection design. It forms internal negative pressure to completely avoid dust overflow, meeting global industrial environmental standards. Built-in sound insulation materials reduce operating noise by 6-10dB, greatly improving workshop working conditions.
Equipped with adjustable composite frequency and amplitude technology, this high efficiency screening machine adapts to different material humidity and particle sizes. Multi-stage screening optimizes material grading, effectively improving screening rate and handling capacity compared with conventional vibrating screens.
With low vibrating mass and optimized vibration system, the equipment reduces power consumption significantly. It saves over 30% energy than traditional bar-type screens and cuts fan power by half, realizing low-operation-cost industrial screening for long-term continuous production.
Only the screen plate vibrates while the screen box remains static, minimizing impact on the base and machine body. The structure avoids frequent failure caused by overall vibration, featuring stable running, low failure rate and extended whole-machine service life.
Support free adjustment of vibration frequency, amplitude and screen angle according to diverse working conditions. All core parameters can be customized to suit coke, sinter ore and various abrasive materials, providing targeted screening solutions for different industrial projects.
Technical Parameters
| Parameter Item | Standard Specification | Customization |
|---|---|---|
| Screening Area | 3-12 m² | Fully customizable |
| Vibration Frequency | 15-30 Hz | Adjustable & customizable |
| Vibration Amplitude | 2-6 mm | Flexible customizable |
| Processing Capacity | 10-120 t/h | Customized on request |
| Motor Power | 1.5-15 KW | Optional & customizable |
| Screen Layer | 1-2 layers | Fully customizable |
| Working Voltage | 880V/415V/440V | Customized for global standards |
Product Uses
The composite frequency environmental vibrating screen is widely used in metallurgy, steel plants, mining and chemical industries. It is specially applied for screening and grading coke, sinter ore, lump ore and other granular materials. Suited for dusty, high-humidity and heavy-duty working conditions, it perfectly meets green and energy-saving production requirements for various industrial material processing projects.
Product Operate Guide
Start the machine without materials first to stabilize composite frequency and vibration status, avoiding instantaneous load impact that damages the screen body and motor.
Adopt continuous and uniform feeding during operation. Avoid sudden overfeeding or intermittent feeding to ensure stable screening accuracy and capacity.
Adjust vibration frequency, amplitude and screen angle properly according to material humidity, particle size and actual production needs.
Clean screen surface gaps and sealed dust cavity regularly to prevent material accumulation and blockage, maintaining long-term efficient operation.
Inspect motor operation, sealing performance and bearing lubrication daily to ensure stable and eco-friendly running of the equipment.
FAQ
What makes the composite frequency vibrating screen different from traditional screens?
It adopts static box and single-screen vibration structure with composite frequency adjustment. It features lower energy consumption, zero dust leakage and lower noise, solving common defects of traditional vibrating screens for green industrial production.
Can the machine work with high-humidity and sticky materials?
Yes. The adjustable composite frequency and amplitude effectively prevent material adhesion and blocking. It runs stably even with humid, sticky ores and coke, ensuring continuous and high-precision screening performance.
Are the machine’s parameters customizable for different working conditions?
All core parameters including frequency, amplitude, processing capacity and voltage are fully customizable. We provide personalized structural and parameter solutions to match various site environments and production requirements.
