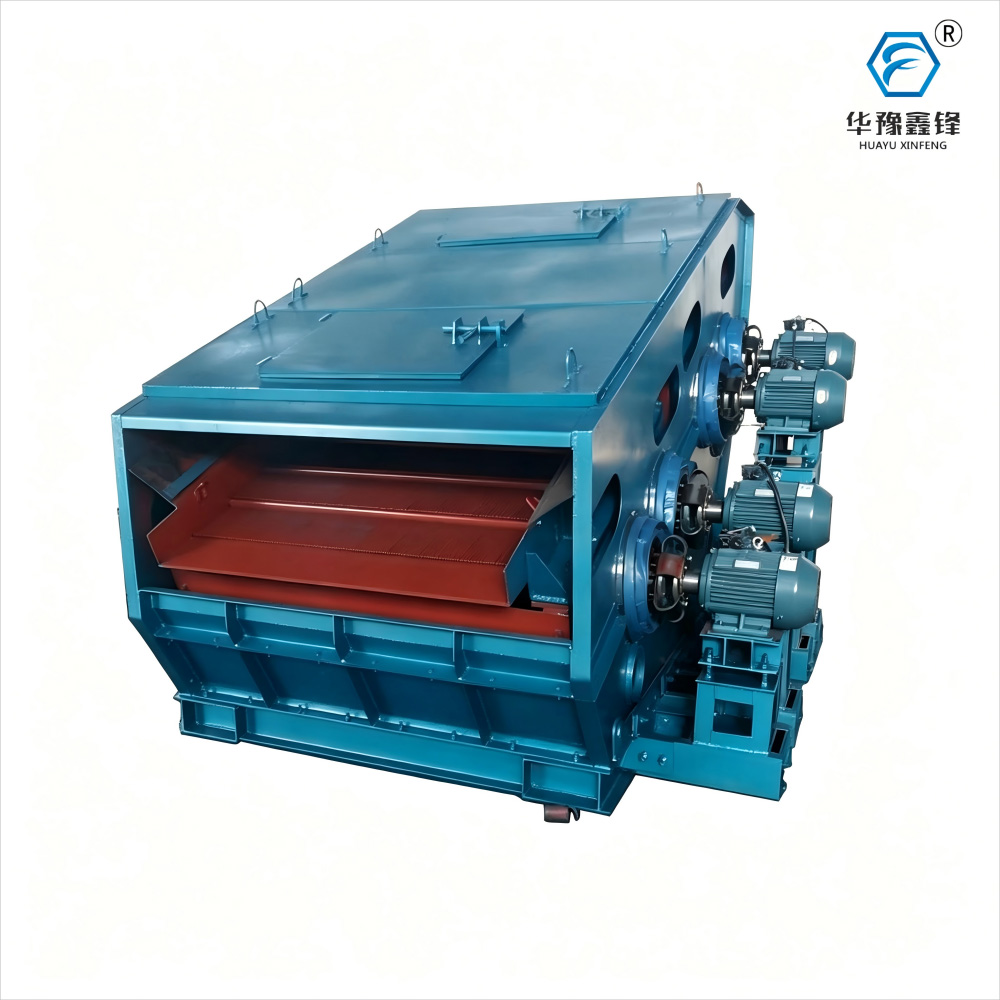

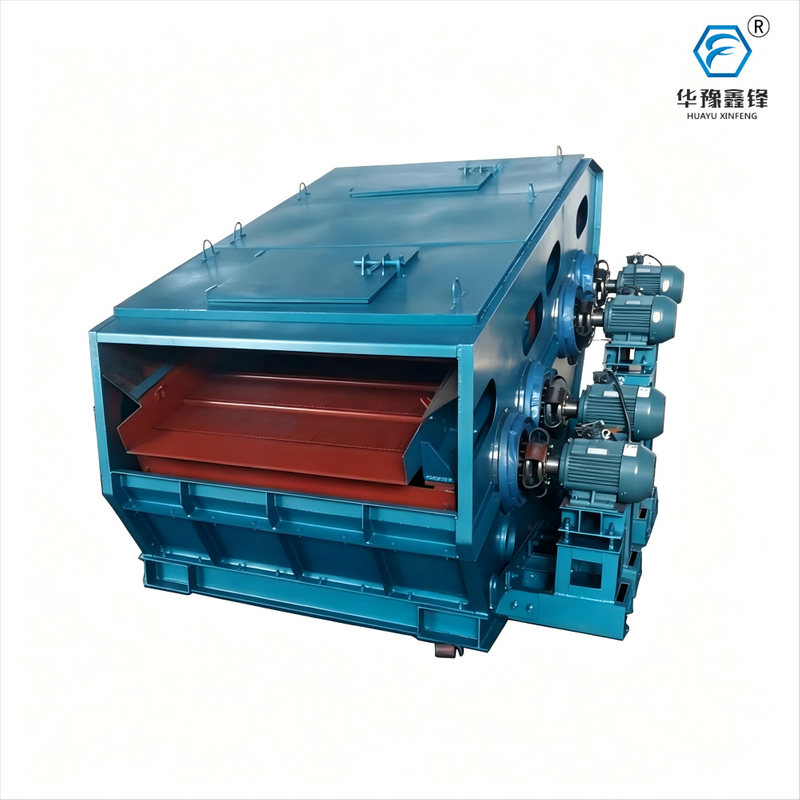

QFS High‑amplitude Strong Vibrating Screen

1. Multi‑independent‑vibration‑unit design, stable and durable structure.

2. Large amplitude & high vibration intensity, anti‑blinding, no screen hole clogging.

3. Good adaptability to sticky‑wet high‑moisture materials.

4. Large processing capacity, reliable screening performance.

5. Wide range of applicable industries and material types.

1. Coal Industry

Classification of gas‑making coal, power‑plant coal, lignite and hard coal. Solve screen‑blinding problems for sticky & wet coal, achieve particle separation of 2‑40 mm.

2. Metallurgy & Mining

Screening of sinter ore, coke, blast‑furnace slag, iron slag, incinerator slag. Separation for hard rock materials: iron ore, calcite, dolomite, basalt, etc.

3. Sand & Aggregate Production

Grading for gravel, crushed stone, natural sand, construction waste and recycled building aggregates.

4. Solid Waste & Recycling

Treatment of garbage compost, organic fertilizer, biomass waste, paper chips and sludge.

5. Chemical & Non‑metallic Minerals

Deep screening for phosphate‑magnesium ore, salt, bauxite, compound fertilizer and other sticky‑wet materials.

Core Application Highlight: Deep screening for sticky‑wet materials over 5 mm. Works well for high‑moisture feed, anti‑clogging, high‑throughput working conditions.

1. Before startup:

Clean screen surface, no‑load start only. Tighten bolts, check screen mesh, lubrication and safety guards.

2. Operation:

Idle run 3‑5min, then feed evenly across screen width. Avoid offset and overload. Monitor motor temperature, vibration and noise.

3. Shutdown:

Stop feeding first, discharge all material then power off. Do not shut down with material on screen. Troubleshoot before restarting.

4. Maintenance & Safety:

Clean sticky residues each shift. Retighten bolts and refill grease regularly. Cut off power for all maintenance. Do not remove guards during operation.
