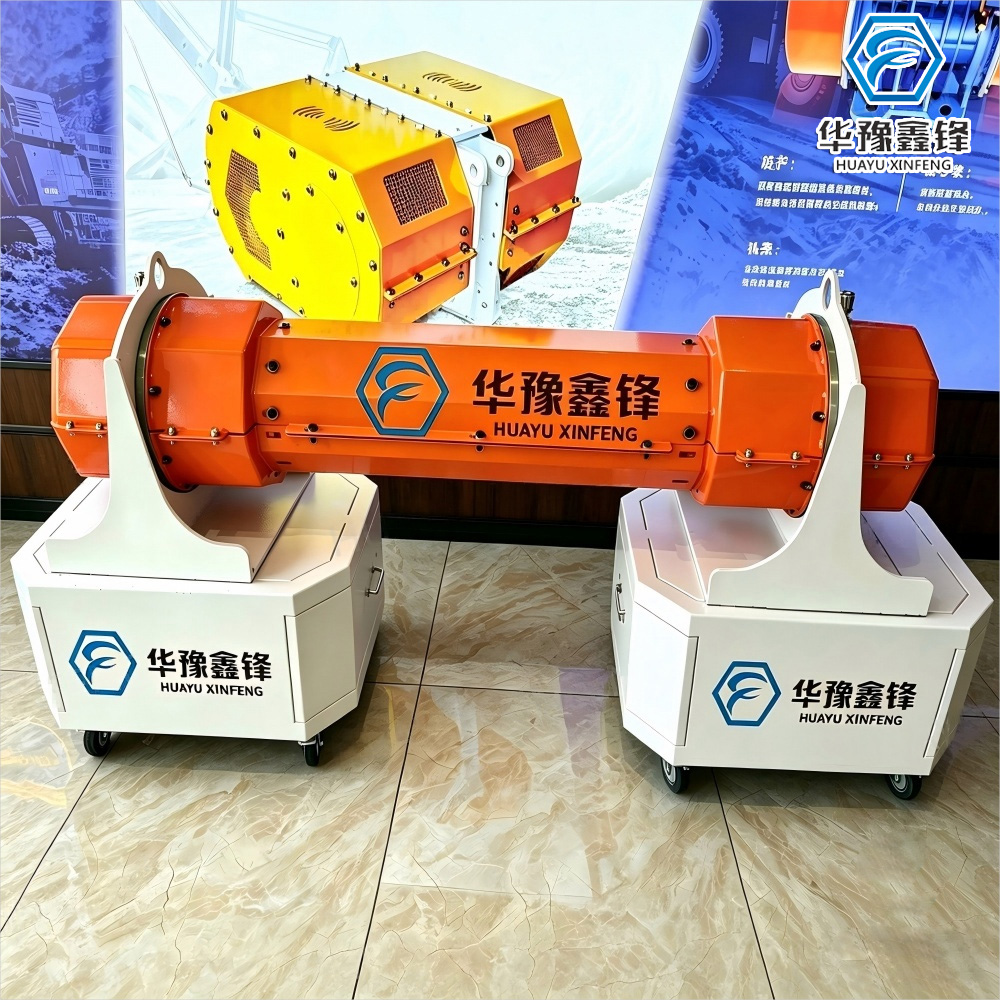

Vibration Exciter

Key Technical Advantages
1. High Exciting Force & Extended Bearing Life
Precision gear synchronization ensures precise phase alignment of the dual-shaft eccentric blocks, delivering powerful and stable exciting force. The optimized sealing, shaft, and bearing design significantly extends B-10 bearing life, capable of withstanding heavy-duty mining conditions.

2. Adjustable Exciting Force
Equipped with detachable external counterweights, the exciter allows easy adjustment of exciting force to accommodate different material characteristics and screening requirements. The wide adjustment range ensures operational flexibility.

3. Dust-Proof Sealing Design
The integrated cast housing combined with precision sealing effectively prevents dust ingress into bearing and gear chambers. This design is particularly suited for dry powder and fine particle screening applications, extending maintenance intervals.

4. Flexible Drive Options
Supports both V-belt drive and flexible coupling direct drive, allowing flexible selection based on site installation conditions and power requirements.

5. Compact Structure for Easy Maintenance
The compact footprint facilitates installation on screen box side plates or bottoms. The modular design simplifies maintenance and replacement, minimizing downtime.
